Filter Stand Alone Automatic Disk

The Stand Alone Automatic Disk Filter – TAVLIT TVD Series is an advanced self-cleaning filtration system designed for low flow rates up to 20 m³/h. Built on TAVLIT’s innovative and patented TVD disc filter technology, this unit combines high-quality disc filtration with a unique, patented flushing process. It features two flush valves and an integrated bypass screen that allows filtered inlet water to be used during the flushing cycle—ensuring continuous water flow while removing accumulated debris.

PLEASE CONTACT US TO ARRANGE SHIPPING - Additional shipping fee is required

During operation, water enters the filter and flows through compressed discs, where dirt accumulates on the outer surfaces and in the grooves. When the head loss reaches a preset threshold (typically 0.5-0.7 bar), the controller initiates a flushing cycle. The inlet valve closes while the drain valve opens, redirecting water through a bypass pipe that passes through the screen element and into the flushing spines. Specially designed venturi devices inject air into the spines, creating an air-water mixture that rapidly cleans the discs with minimal water usage. An additional time-based flushing option is provided as a backup, ensuring the filter returns to normal operation quickly.

Ideal for agricultural, turf, and industrial water filtration, the TVD Series is also available in a standard automatic configuration (TAD model) for increased versatility.

Key Features & Benefits:

Innovative Flushing Technology:
Patented design uses venturi devices to mix air and water for rapid, efficient cleaning.

Uninterrupted Operation:
The bypass screen and automatic flushing ensure water flow to the field is never interrupted.

High Performance at Low Flow Rates:
Suitable for systems with flow rates up to 20 m³/h.

Robust Construction:
Designed to withstand high pressures (up to 10 bar) and harsh conditions.

Versatile Connections:
Available with male thread and Victaulic connections for easy integration.

Customizable Filtration:
Filtration grade options range from 20 to 425 microns (800 to 40 mesh).

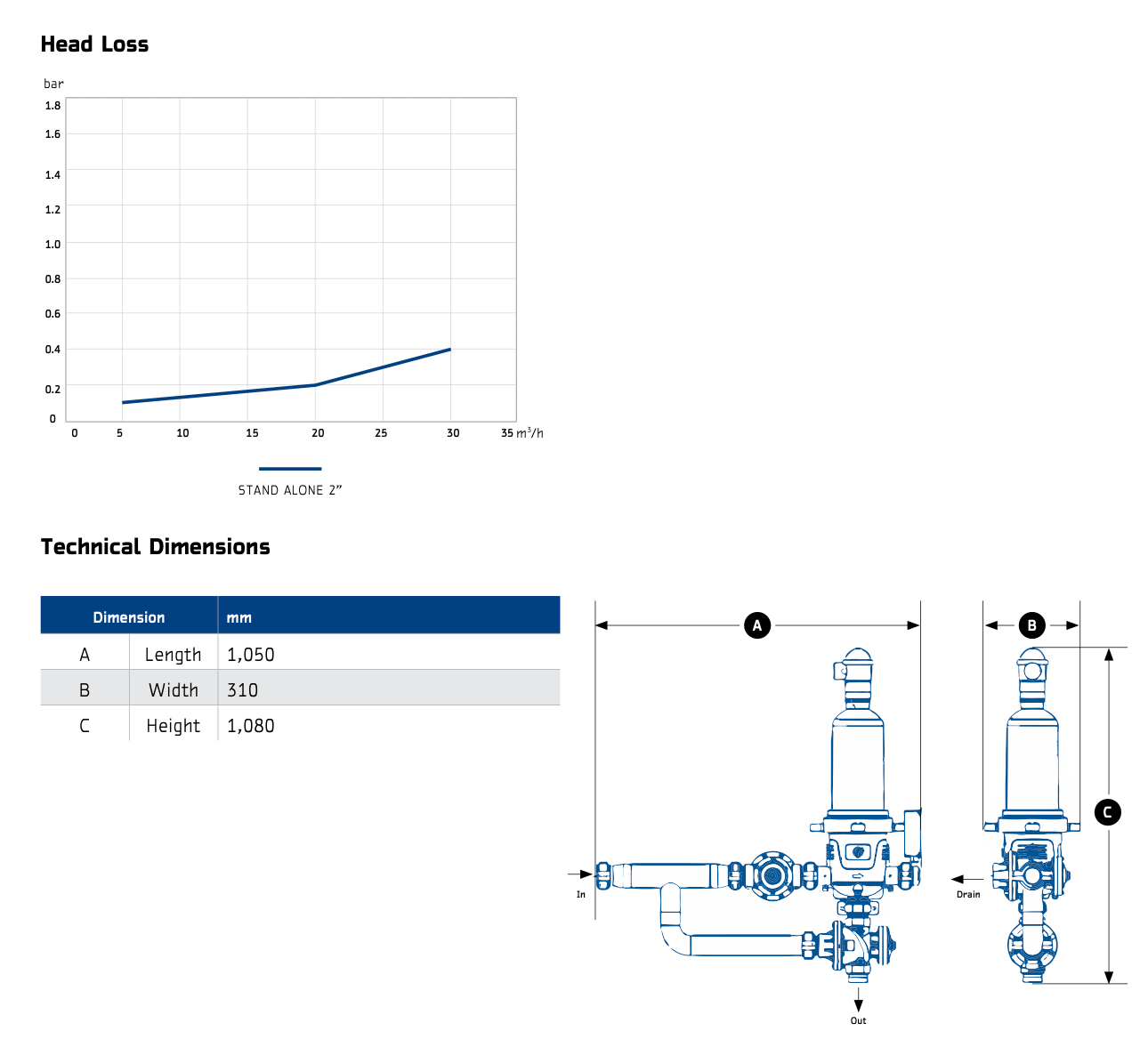

Technical Specifications:

Applications:

Agricultural Irrigation:
Provides clean water to protect drip emitters and dosing pumps.

Turf Management:
Ensures consistent water flow for lawns, sports fields, and landscaping.

Industrial Water Treatment:
Suitable as a primary or backup filtration system in low-flow industrial applications.

Backup Filter:
Can serve as a secondary filter for field plots, gravel filtration systems, or sand separators.

MADE IN ISRAEL

Engineered to the highest standards, the TAVLIT TVD Series filter guarantees durability, efficiency, and long-term reliability in challenging agricultural and industrial environments.
