Precision Sand Separation for Irrigation & Industrial Applications

The Sand Separators Hydrocyclone is a high-efficiency filtration solution designed for removing sand and solid particles from water, ensuring smooth system operation and preventing clogging in irrigation and industrial pipelines. Its corrosion-resistant polymeric body provides maximum durability and energy efficiency, making it an essential component in any filtration setup where sand accumulation is an issue.

How the Hydrocyclone Sand Separator Works

🔹 Tangential Water Entry – Water enters at high velocity through the inlet pipe, creating a centrifugal vortex inside the separator.
🔹 Sand & Heavy Particles Separation – The high-speed rotational flow pushes heavier particles to the chamber walls, allowing them to settle at the collection chamber below.
🔹 Clean Water Discharge – As clean water rises through the system, it exits via the outlet port, ensuring effective solid separation.
🔹 Easy Flushing & Maintenance – Dirt and sand are flushed by opening a control valve, which can be manually activated or set on an automated controller.

💡 Consistent flow rate and proper system design ensure maximum separation efficiency.

Key Features & Benefits

✔ Highly Efficient Sand Removal – Eliminates particles with a higher specific gravity than water, optimizing system performance.
✔ Durable Polymeric Construction – Corrosion-resistant non-metallic body ensures long-lasting durability in harsh environments.
✔ Low Maintenance – Minimal upkeep required; regular flushing keeps the system operational with little intervention.
✔ Energy Efficient – Optimized design enhances separation efficiency, reducing operational costs.
✔ Wide Application Range – Suitable for irrigation, industrial processing, and water treatment systems.

Technical Specifications

2" Sand Separator – Hydrocyclone

📌 Connection Diameter – 50 mm (2 inches)
📌 Maximum Pressure – 10 bar (145 psi)
📌 Maximum Temperature – 70°C (149°F)

Separation Efficiency / Flow Rate

Applications

🌱 Agriculture & Irrigation – Prevents clogging in drip and sprinkler systems, ensuring smooth operation.
🏭 Industrial Filtration – Removes sand and solid contaminants from process water.
💧 Water Treatment Systems – Ensures clean water supply by removing unwanted sediments.

🚀 Upgrade your filtration system with the Sand Separators Hydrocyclone for superior efficiency and long-term reliability!

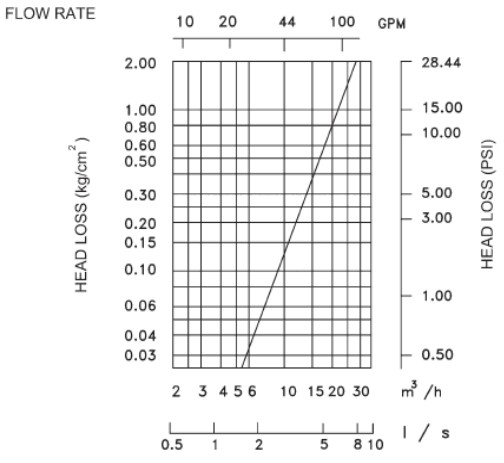

Headloss Chart
